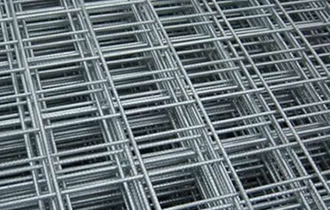

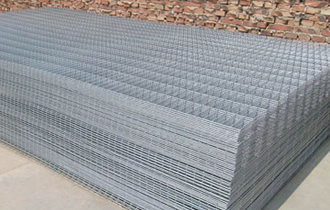

    Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.

    Assortments available:
    Welded Stainless Steel Wire Mesh Panels
    Galvanized Welded Mesh Panels
    Hot-dip Zinc Plating Welded Mesh Panels

    Property: Welded wire mesh panels enjoy such properties as corrosion resistance, aging resistance, sunshine resistance and weather resistance.

    Forms of corrosion resistance include electric galvanizing, hot-dipp galvanizing, PVC spraying and PVC coating.

    Galvanized Fencing Mesh
    OpeningWire Diameter<BWG>
    In inchIn metric unit(mm)
    2" x 3"50mm x 75mm2.0mm,2.5mm,1.65mm
    3" x 3"75mm x 756mm2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
    2" x 4"50mm x 100mm2.11mm,2.5mm
    4" x 4"100mm x 100mm2.0mm,2.5mm
    Technical Note:
    1,Standard roll length: 30m;width: 0.5m to 1.8m
    2,Special sizes available at request
    3,Packing: in waterproof paper in rolls. Custom packing available at request.

    PVC Coated Welded Mesh:
    Opening
    Wire Diameter<BWG>
    In inch
    In metric unit(mm)
    1/2" x 1/2"
    12.7mm x 12.7mm
    16,17,18,19,20,21
    3/4" x 3/4"
    19mm x 19mm
    16,17,18,19,20,21
    1" x 1"
    25.4mm x 25.4mm
    15,16,17,18,19,20
    Technical Note:
    1.Standard roll length: 30m;width: 0.5m to 1.2m
    2.Special sizes available at request
    3.Packing: in waterproof paper in rolls. Custom packing available at request.
